Stainless steel shortener for shortening of stainless steel chains, extremely convenient in applications, in assembled systems or for retrofitting.

Preferred areas of application for the VLWI shortener are water and wastewater applications and the product can also be used in connection with chemicals and food products; however, restrictions will apply and we recommend that you contact the manufacturer for advice prior to exposing the product to such use.

Material: VLWI 5/6 - 7/8 1.4571 (shortener) and 1.4404 (BWI) / AISI 316 TI (shortener) and AISI 316 L (BWI).
VLWI 10 - 16 1.4571 (shortener) and 1.4462 (BWI) / AISI 316 TI (shortener) and AISI 318 LN (BWI).

  • Marking: CE-marked
  • Finish: Pickled and blasted.
  • Safety factor: 4:1
  • Grade: 6
VLWI G6
Correct application
Correct application
Correct application
Wrong application
Select a row from the table below, then click the add to quote button

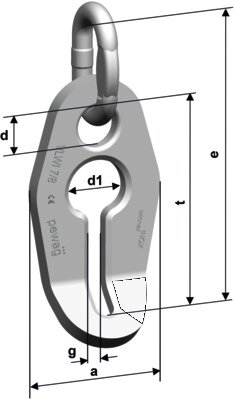

Part Code Code WLL
ton
a
mm
d
mm
d1
mm
t
mm
e
mm
g
mm
Weight
kg
CAD
På forespørsel VLWI 5/6 -6 0.9 52 16 26 80 114 8 0.22
På forespørsel VLWI 7/8 -6 1.6 68 22 34 111 156 11 0.57
På forespørsel VLWI 10-6 2.5 86 27 40 133 186 12 1.06
På forespørsel VLWI 13-6 4.25 108 32 52 169 242 16 2.22
På forespørsel VLWI 16-6 6.3 134 38 64 204 284 20 4.16

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
