General: Application for shortening of chain.





WARNING! Not to be heat-treated.



  • Material: Alloy steel grade 8.
  • Marking: Code and grade.
  • Finish: Painted.
  • Safety factor: 4:1.
  • Grade: 8
GH_new[2]_225mm
FHm_new3_225mm
Select a row from the table below, then click the add to quote button

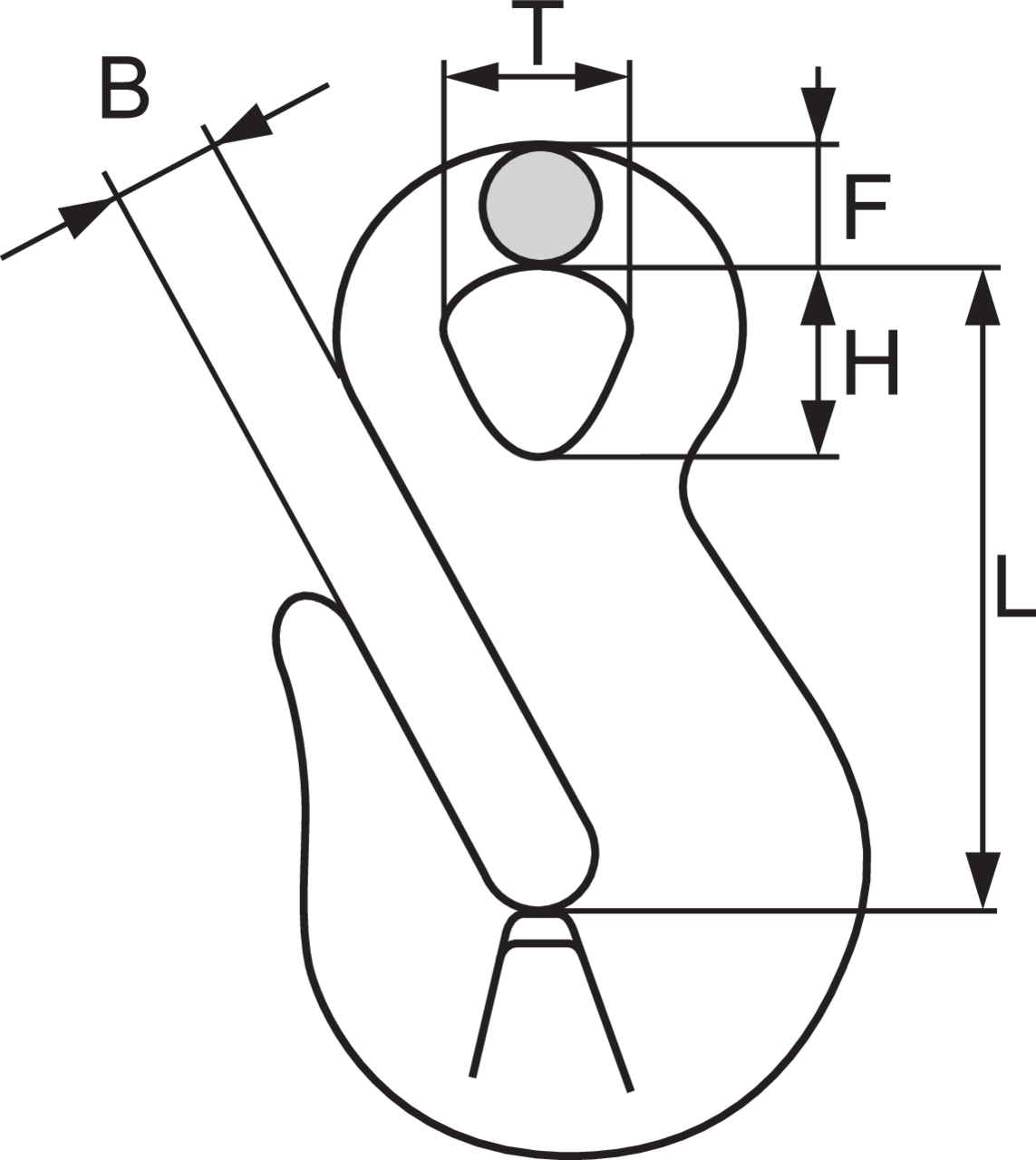

Part Code Code WLL
ton
For chain gr 8 Ø
mm
B
mm
F
mm
H
mm
L
mm
T
mm
Weight
kg
CAD
På forespørsel GH-5/6-8 1.12 5-6 7 8 10 42 13 0.12
08.12YH08 GH-7/8-8 2 7-8 9 8 12 57 16 0.21
08.12YH10 GH-10-8 3.15 10 12 10 14 70 26 0.4
08.12YH13 GH-13-8 5.3 13 15 13 22 91 23 0.86
08.12YH16 GH-16-8 6.4 16 20 17 30 115 33 1.6
08.12YH20 GH-18/20-8 10 18-20 23 21 35 133 36 3
Other dimension on request.
