A quality painted GN Chain Grapnel HK7 with ranges from WLL 100 tons to 250 tons.

  • Material: Forged steel.
  • Finish: Painted/self coloured.
Select a row from the table below, then click the add to quote button

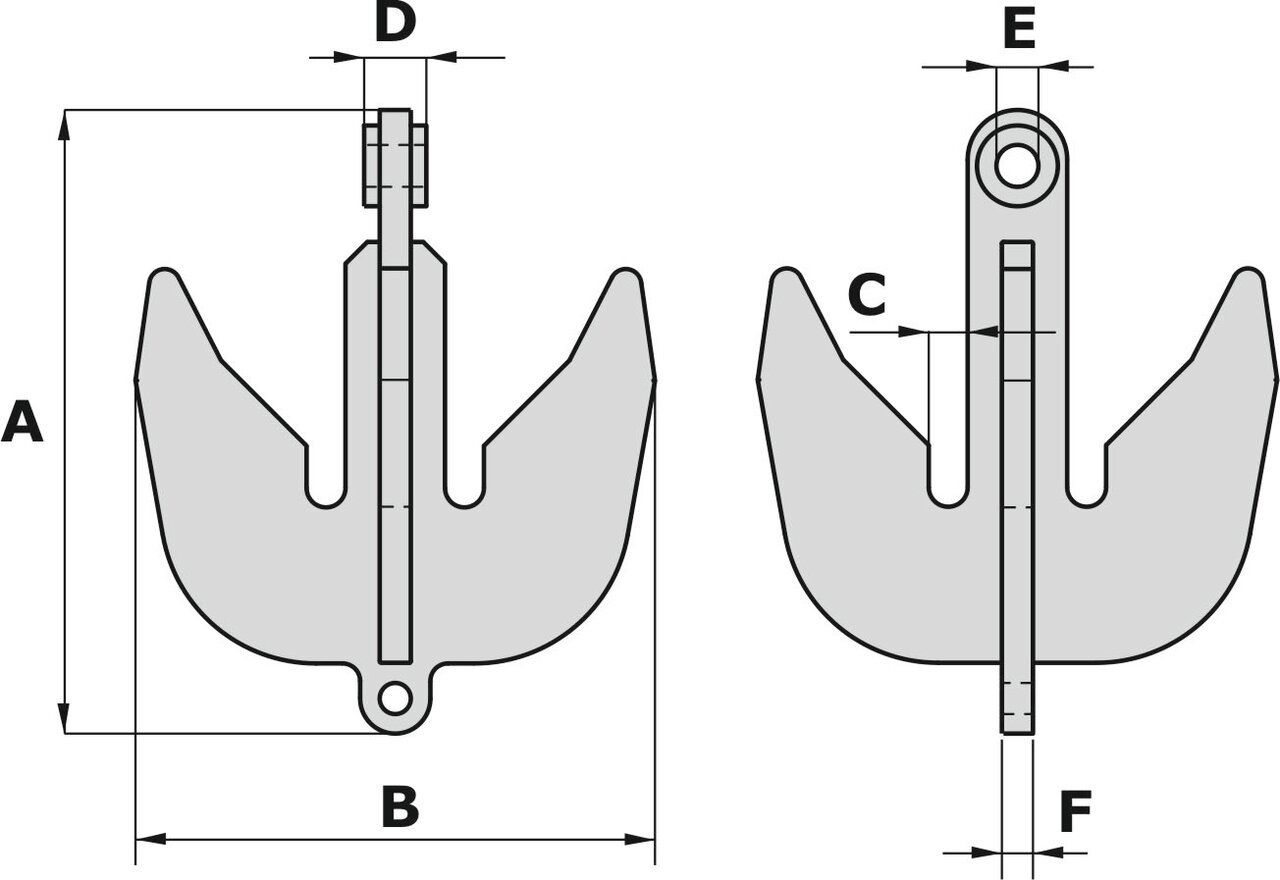

Part Code SWL ton A
mm
B
mm
C
mm
D
mm
E
mm
F
mm
Weight
kg
CAD
99.NO4613379792 150 1,778 1,372 102 114 100 76 1,266
99.NO4613379788 200 2,008 1,670 125 200 145 100 2,290
99.NO4613379793 250 2,008 1,670 125 200 145 100 2,290
