Select a row from the table below, then click the add to quote button

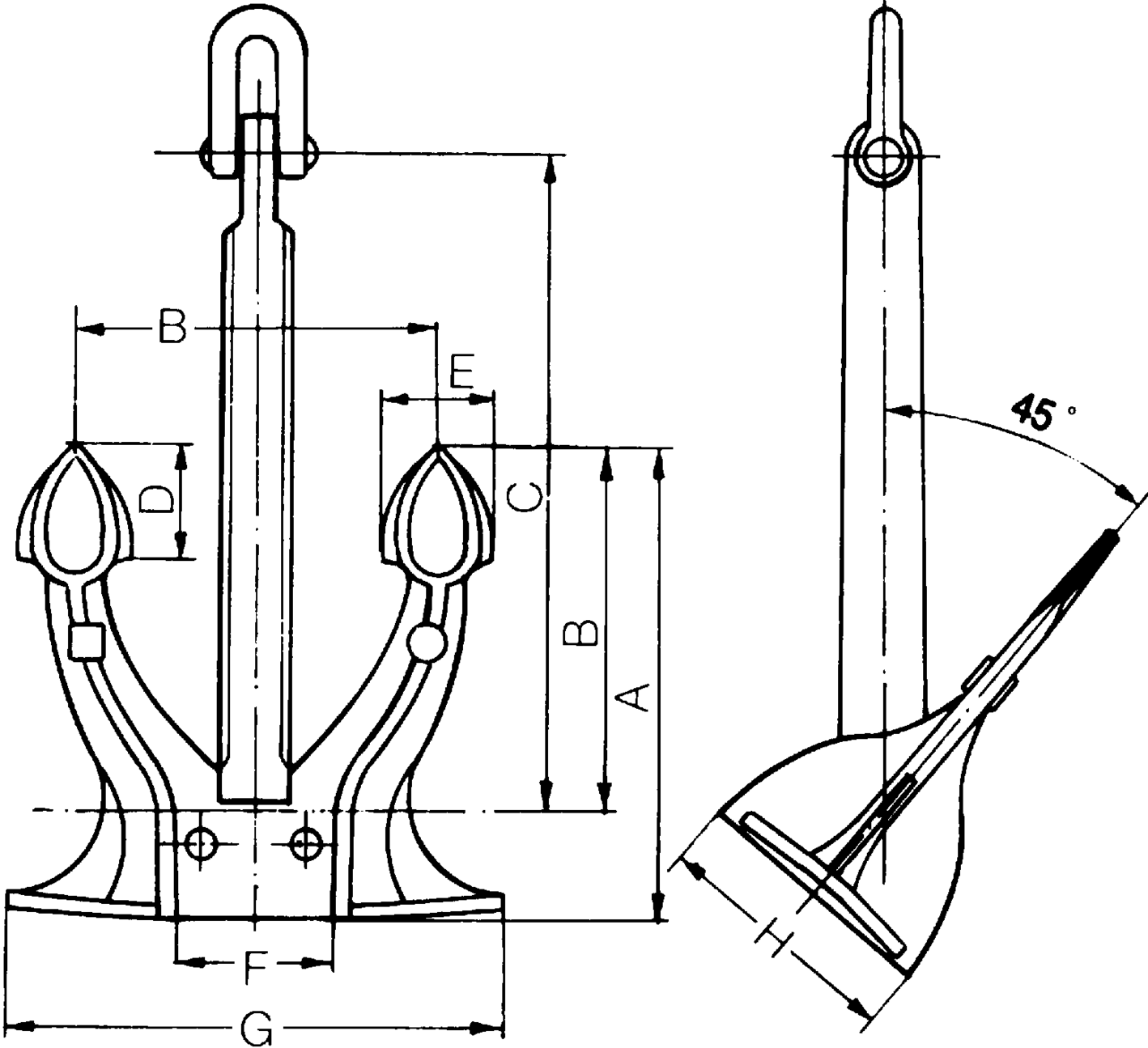

A
mm
B
mm
C
mm
D/E F
mm
G
mm
H
mm
Weight
kg
CAD
650 500 990 160 220 690 336 210
650 500 900 175 232 690 358 240
716 550 990 175 232 760 398 300
780 600 1,080 190 258 828 417 360
780 600 1,080 190 258 828 431 420
780 600 1,150 190 258 828 445 450
846 650 1,170 205 280 900 446 480
846 650 1,170 205 280 900 475 570
910 700 1,260 221 302 962 474 610
910 700 1,260 221 302 962 486 660
975 750 1,350 235 320 1,032 508 750
975 750 1,350 235 320 1,032 519 780
1,040 800 1,440 251 340 1,100 547 900
1,040 800 1,460 251 340 1,100 547 950
1,102 850 1,530 270 362 1,170 573 1,020

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

Get CAD
Download
