General: For medium and large loads and coil widths. A separate stand should be used for the coil when it is discharged. See the introductory text above in the section on C-hooks.
Design: Low profile where there is limited headroom. The counterbalance ensures that the fork is always in a horizontal position, regardless of whether the hook is empty or loaded. Arched plate on top section helps to protect the coils.
Proof: 1,5 x WLL.
- Material: Plate of high-strength structural steel.
- Marking: Type, working load limit, maximum coil width and CE marking.
- Finish: Yellow painted.

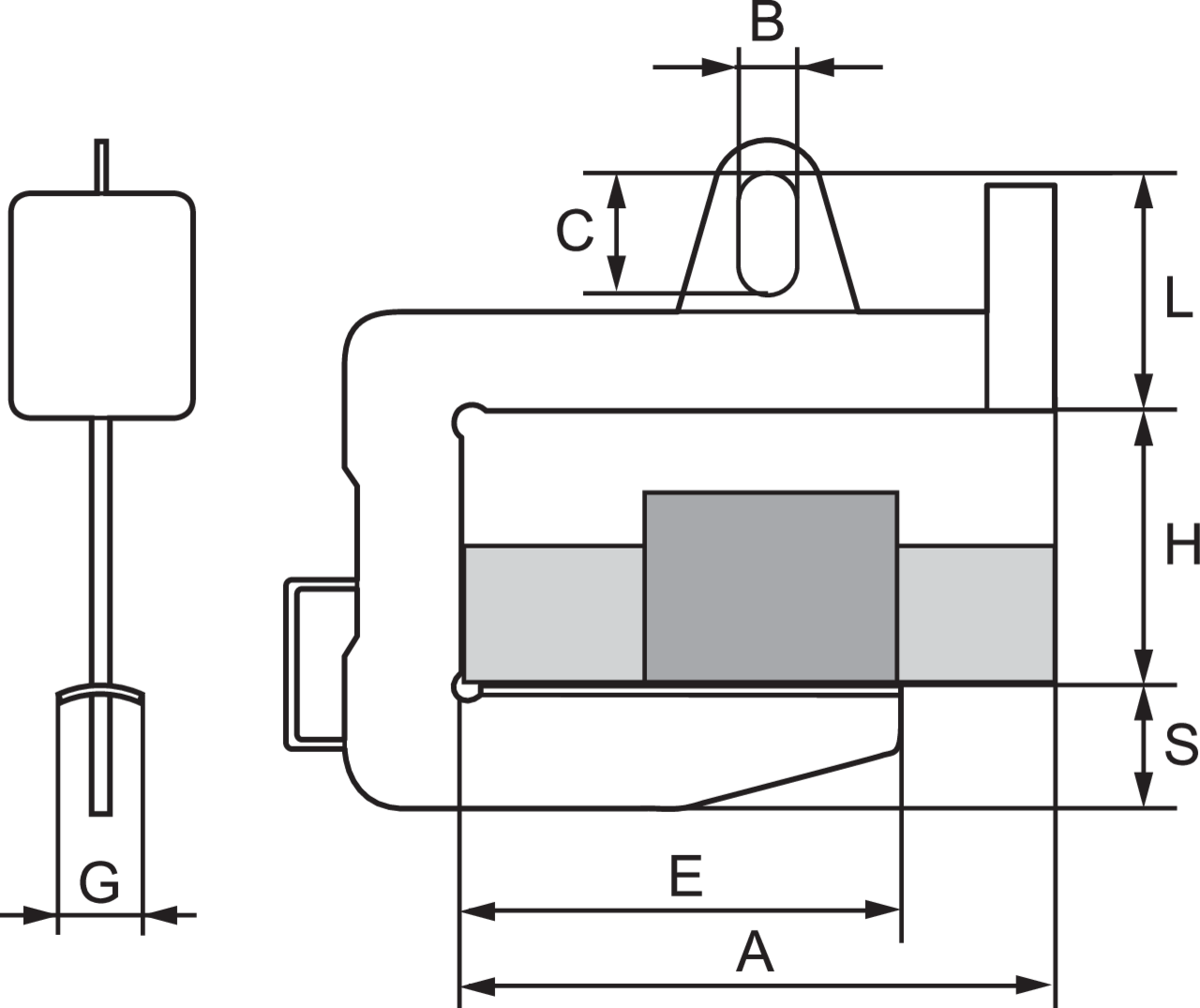

- Note: We recommend the use a of 2-leg chain sling, headroom permitting as an increase in dimension L provides better balance.
- Safety factor: 1,5 x WLL.
Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
